3.5 Ton Yanmar Diesel Mini Excavator with Enclosed A/C Cab, Hydraulic Thumb and Swing Boom
A full-cab 3.5 ton excavator at a price that used to buy a canopy machine. Yanmar 3TNV88F 24 HP diesel, enclosed cab with air conditioning and heat, factory hydraulic thumb, swing boom and 2-speed travel.
- Yanmar 3TNV88F 24 HP, EPA Tier 4 Final
- Enclosed cab with A/C and heat
- Factory hydraulic thumb
- Swing boom for foundations and fences
- Rear-view camera with 7 in LCD
- 2-speed planetary travel motors
The numbers that matter
Built to work, priced to own.
Six reasons contractors pick this 3.5 ton machine over a used name-brand excavator at twice the price.
Yanmar 3TNV88F diesel
The same 3-cylinder engine used in name-brand 3 - 4 ton excavators. Parts and filters are stocked at any Yanmar dealer.
124 inch dig depth
Deep enough for water and sewer laterals, footings, septic and 8 foot drainage trenches.

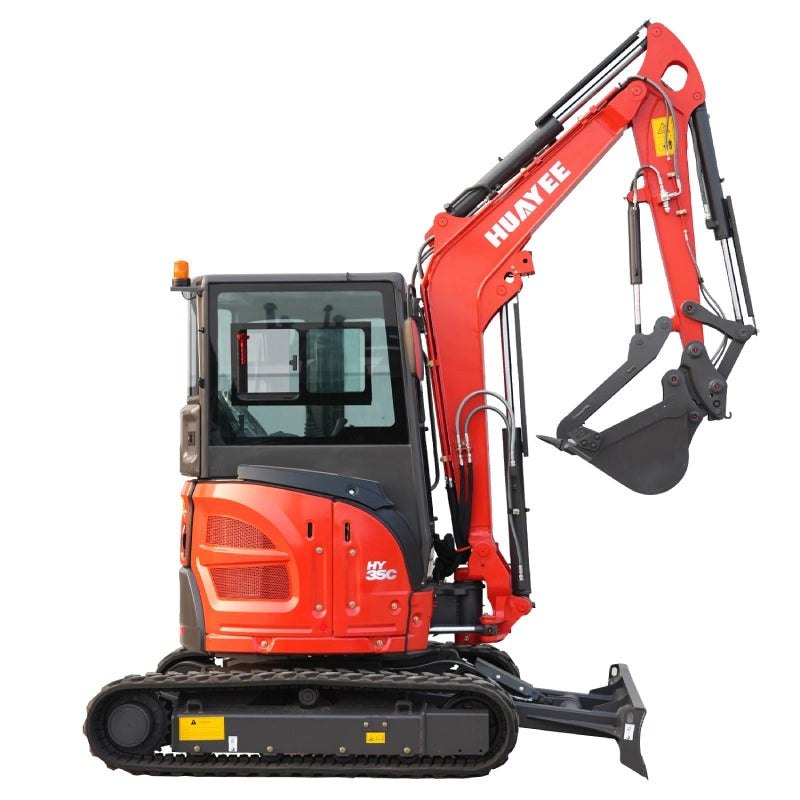

Hydraulic thumb from the factory
Rocks, stumps, logs, pipe and demolition debris without buying and plumbing a thumb later.
Enclosed A/C and heat cab
Work in July heat or January cold. Wipers, washer, radio and a suspension seat keep the operator productive.
Hengli hydraulics, 99 L/min
Piston pump and multi-function valve at 3,700 psi with enough flow for a breaker, auger or grapple.
Camera, lights, 2-speed travel
Rear-view camera on a 7 inch screen, LED work lights and a high travel range for moving across the site.
Real work, real jobsites.

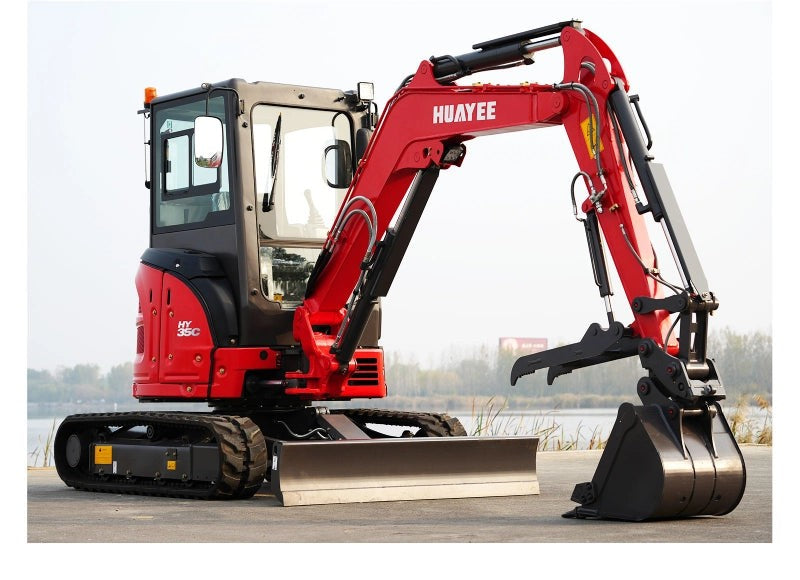

Hydraulic thumb and swing boom at work
Pick and place rock, stumps and pipe, then offset the boom and dig flush to the foundation.

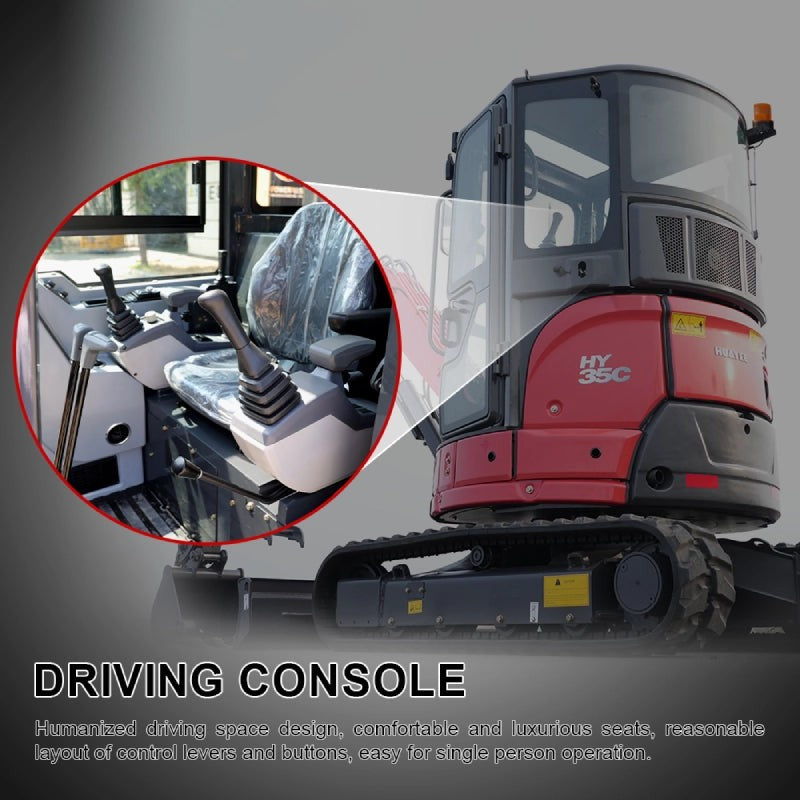

Pilot controls and a suspension seat
Low-effort joysticks, climate control and a clear view of the bucket for full production days.
207 inches of reach, 137 inches of dump height
Load a dump trailer or a 1-ton truck bed from the trench without repositioning.
Specifications and what is included
The full-cab 3.5 ton excavator at a price that used to buy a canopy machine. A 3,750 kg (8,268 lb) operating weight, a Yanmar 3TNV88F 24 HP direct-injection diesel (EPA Tier 4 Final), an enclosed cab with air conditioning and heat, a factory hydraulic thumb, a swing boom and 2-speed planetary travel motors make it a real production machine, not a hobby digger. Dig to 124 inches (3.17 m), reach 207 inches and dump into a truck bed from 137 inches, in any weather.
It is built for contractors, landscapers, fencing and drainage crews, farms and property owners who want to stop paying rental invoices and own a machine that works every day. Brand new, crated, and delivered free by LTL freight to the contiguous 48 states.
What your order includes
- Brand-new IronPeak Titan 3500 3.5 ton mini excavator, enclosed FOPS cab
- Yanmar 3TNV88F 24 HP diesel engine, EPA Tier 4 Final / EU Stage 3A
- Factory hydraulic thumb fitted to the arm
- 0.12 m3 (600 mm) standard digging bucket
- Air conditioning and heat, suspension seat, USB radio, LED work lights, beacon
- Rear-view camera with 7 inch LCD screen
- Hydraulic pilot controls with 2-speed planetary travel motors
- Dozer blade, 300 mm rubber tracks, auxiliary hydraulic lines with quick-connect
- Owner's manual, tool kit and a fully crated heavy-item freight preparation for U.S. delivery
Eight reasons this machine wins
- Yanmar 3TNV88F diesel. The same 3-cylinder engine used in name-brand 3-4 ton excavators. Parts and filters are stocked at any Yanmar dealer.
- 124 inch dig depth. Deep enough for water and sewer laterals, footings, septic and 8 foot drainage trenches.
- Hydraulic thumb from the factory. Rocks, stumps, logs, pipe and demolition debris without buying and plumbing a thumb later.
- Swing boom. Offset the boom and dig flush against foundations, fences and curbs without repositioning the tracks.
- Enclosed A/C and heat cab. Work in July heat or January cold. Wipers, washer, radio and a suspension seat keep the operator productive.
- Hengli hydraulics, 99 L/min at 3,700 psi. Piston pump and multi-function valve with enough flow for a breaker, auger or grapple.
- Rear-view camera and LED lights. Back up safely on tight sites and keep digging after dark.
- Trailer-friendly. Under 8,300 lb with a 12 inch track, so it moves on a 10,000 lb class equipment trailer behind a 3/4 ton pickup.
In the field
- Utility and drainage trenching - water, sewer, conduit, French drains and culverts.
- Foundations and footings - additions, retaining walls, pier holes and basement digs.
- Land clearing - stumps, brush and rock with the hydraulic thumb.
- Farm and ranch - fence lines, ponds, stock tanks, irrigation and manure handling.
- Landscaping and hardscape - grading pads, moving boulders, planting mature trees.
- Demolition and municipal work - sidewalks, small structures, storm drain repairs.
Specifications
| Basic | |
|---|---|
| Operating weight | 3,750 kg (8,268 lb) |
| Bucket capacity | 0.12 m3 |
| Fuel tank capacity | 41 L (10.9 gal) |
| Track width | 300 mm (12 in), double-tooth rubber, 44 shoes and 4 rollers per side |
| Track ground pressure | 33.6 kPa |
| Working range | |
| Max digging depth | 3,165 mm (124 in) |
| Max digging height | 4,920 mm (193 in) |
| Max dump height | 3,490 mm (137 in) |
| Max digging radius | 5,260 mm (207 in) |
| Bucket digging force | 30 kN |
| Arm digging force | 24 kN |
| Traction | 38.5 kN |
| Gradeability | 35 degrees |
| Travel speed | 2.7 / 4.5 km/h (2-speed) |
| Rotation speed | 9.5 rpm |
| Engine | |
| Engine | Yanmar 3TNV88F, 3-cylinder direct-injection diesel |
| Rated power | 18.2 kW (24 HP) |
| Emission standard | EPA Tier 4 Final and EU Stage 3A |
| Fuel system | Direct injection, self-priming |
| Hydraulics | |
| Main pump | Hengli HP5V45 piston pump, 99 L/min, 25.5 MPa (3,700 psi) |
| Main control valve | Hengli HVSE-09-10, 100 L/min, hydraulic braking |
| Swing motor | Hengli HM5X18, 20.6 MPa |
| Travel motors | Hengli HM4V22-11, 25.5 MPa, 2-speed planetary |
| Hydraulic oil | HM046 / 50 L |
| Cab and features | |
| Cab | Enclosed FOPS cab, air conditioning and heat, suspension seat, USB radio, wiper and washer |
| Controls | Hydraulic pilot joysticks, 2-speed travel, hydraulic oil cooler with fan |
| Safety and lighting | Rear-view camera with 7 in LCD, LED work lights, beacon light, mirrors |
| Attachments | Hydraulic thumb, 600 mm bucket, dozer blade, auxiliary lines with quick-connect |
The working-range diagram and the full factory specification sheet are in the product photos above.
What's in the crate, and how it gets to you
In the crate
- 1 x IronPeak Titan 3500 3.5 ton mini excavator, enclosed A/C cab
- 1 x factory hydraulic thumb (fitted)
- 1 x 0.12 m3 / 600 mm digging bucket
- 1 x dozer blade (fitted)
- Rear-view camera, LED lights and beacon (fitted)
- 1 x owner's manual and tool kit
- Timber freight crate, curbside delivery included
Shipping
Every machine ships strapped inside a timber crate on a flatbed by LTL freight. The carrier calls ahead to book a curbside delivery appointment. Freight is on us - you uncrate, fuel it and go to work.
